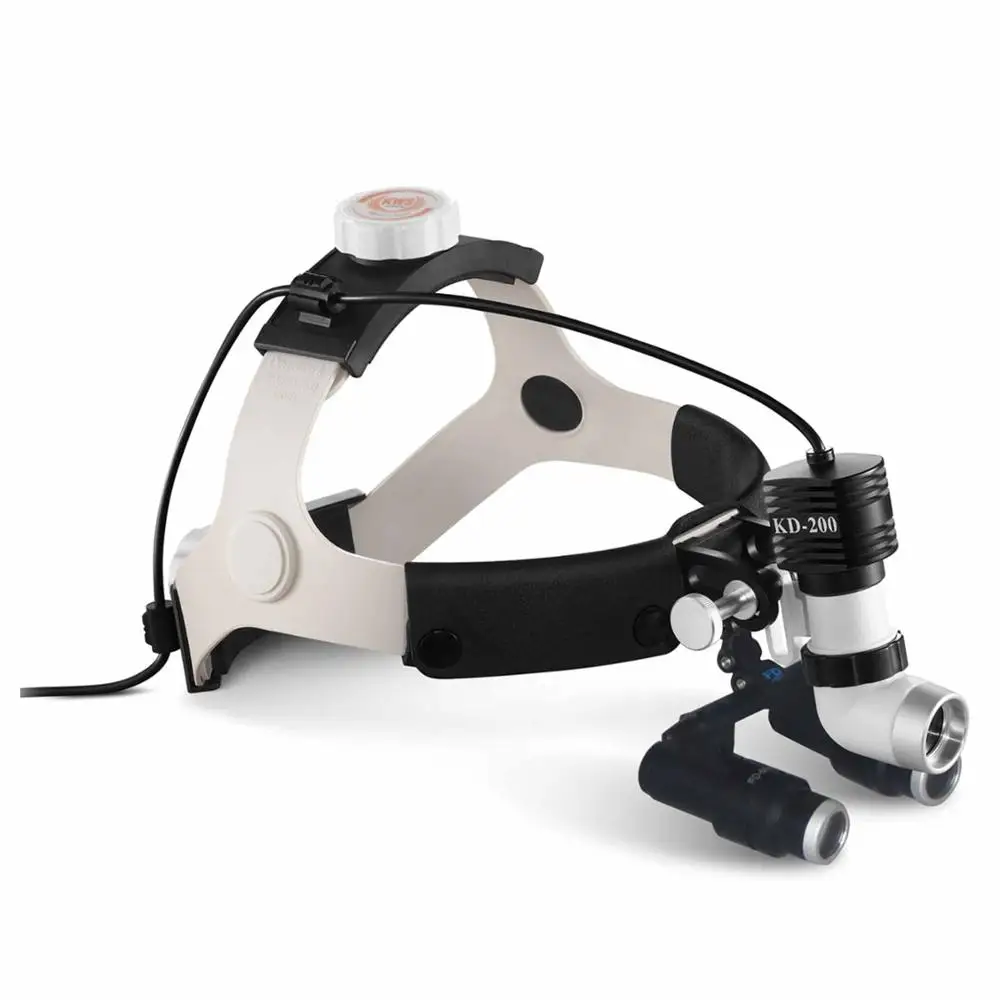

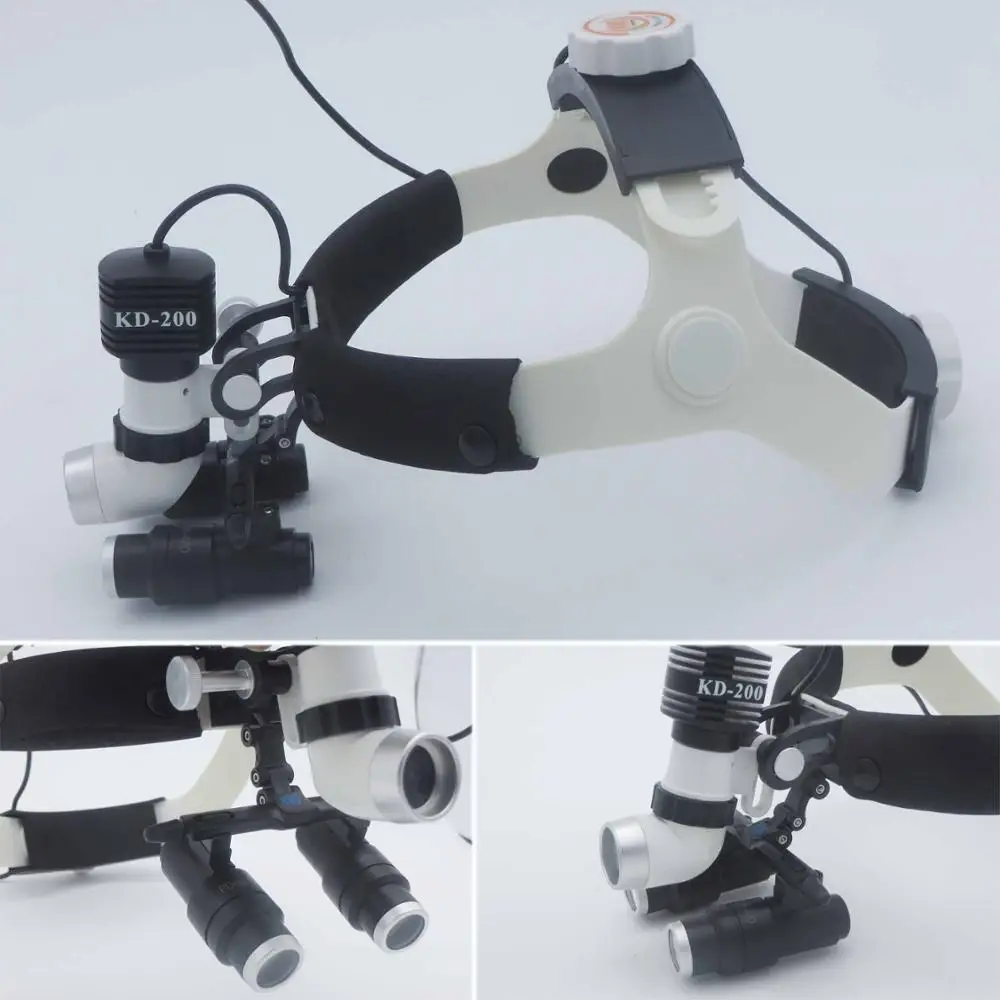

KD-202A-6 5W LED high brightness magnification head light

FOB Reference Price:Get Latest Price
  • >=1
    US $699.00
Supply Ability:
5 Case/Cases per Day
Report Suspicious Activity
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Model Number:
Packaging & Delivery
Packaging Details
Delivery Time
6 workingdays after payment


The headlight adopts 5W high-power international brand LED as light source. After optical structure design, the light distribution is uniform, the spot is clear and bright, and the design of physical heat dissipation is adopted, without low-frequency interference. consists of lamp header, head bend, power box, charger, USB line .
The loup is Kepler 4.0X magnifier, lens, prism, eyepiece image amplification system composed of multiple, large, high resolution. The loupe is mainly composed of 2 lenses, a one-way spiral regulating bracket and a headlamp pendant.
This product is integrated with the light and aesthetic design. to ensure the focus and  spot  always synchronized , avoiding the tedious synchronous debugging,Magnified object is always clear and bright full of true. Products through strict man-machine design, wearing comfortable  .one-way regulation ,more precise and convenient
The product is powered by a lithium battery, and the performance is safe and stable. It is suitable for the operation room,ENT, dental, micro plastic and other highly difficult surgical lighting.
Technical Parameter

Head light
.Voltage:AC90-240V 50-60Hz
.Input Power:≤10W
.Blub Power:LED 5W
.Color temperature:5500±500K
.Lamp life:50000h
.DC charging time:5h
.DC power supply time:4h
.Package size:250*190*125mm
.Packing material: carton


.Work distance:420mm
.View field:φ55~φ80
.Depth of field:30~40mm
.Pupil distance: 46 ~ 66mm
.N.W.: 0.14Kg
.Packing size: 215*145*90mm
.Packaging: Oxford zipper bag

Details description


.Wide field of view, long depth of field, high resolution,low multiples amplification, two-way sync adjustment, quick positioning and more attractive
.The appearance of high-end fashion. Fast focusing and positioning


Head light
.High power of 5W LED lighting, high brightness,
.Physical cooling,No low frequency interference,long life,
.Light spot is adjustable.
.Opitcal design,uniform light distribution.


Shortage:Not so high-grade appearance


.High quality and high brightness head light,guarantee the big operation
.If you choose the suitable magnifier to combine with it,it looks more clearly,operation will be more easy and accurate



Medical:Clinic.Dental.ENT.ophthalmology.micro-surgery.operating room.Industry
