FD-503G-1 2.5X LED high brightness lighting loupe

FOB Reference Price:Get Latest Price
  • >=1
    US $475.00
Supply Ability:
5 Case/Cases per Day
Port:
Shanghai/Ningbo
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
YN
Model Number:
FD-503G-1
Application:
Industry
Certificate:
ISO9001
Packaging & Delivery
Packaging Details
carton
Delivery Time
Shipped in 2 days after payment

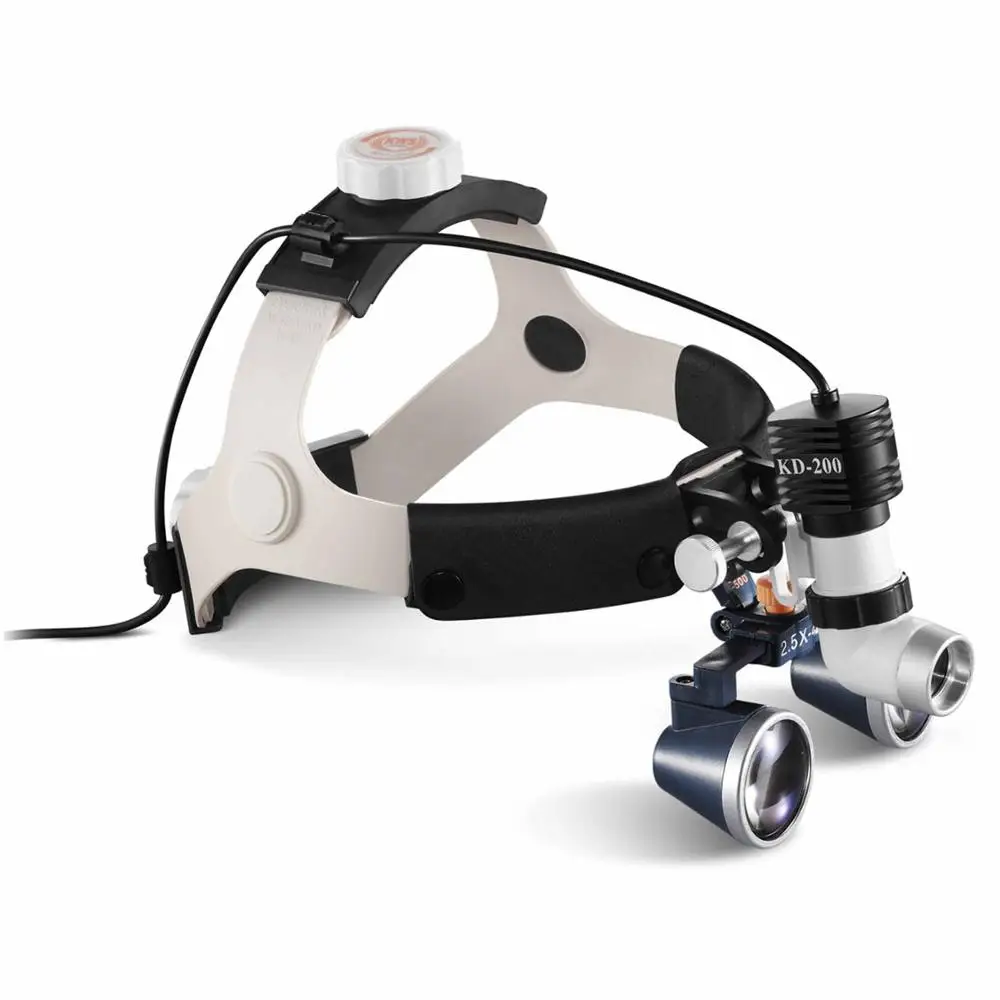

This product is Galileo 2.5X magnifying glass, objective lens and eyepiece composite image enlargement system, large field of view, long depth of field, high resolution. It consists of the two tube, two-way synchronous adjustment bracket and headlamp pendant components.
Headlights select 5W high-power international brand LED light for source, it goes through the optical structure design, light distribution, clear spot, high brightness, high color rendering index, it mainly consists of the lamp, hood, 2 power Po, charger, USB charging cable composition.
This product amplification lighting integration, to ensure that the magnification of the object is always the same with the light, to avoid the cumbersome co-bit debugging process to ensure that the user observed the magnified image is always clear and bright full and true. Products go through rigorous man-machine design,it is easy to wear comfortable, interpupillary distance adjustment fast and convenient. It can be applied to the oral cavity; ENT; ophthalmology; micro-plastic surgery and other lighting, but also for pet medical surgery lighting, but also for industrial product testing and luxury goods in the jewelry identification.
Technical Parameter

Loupe
.Magnification:2.5X
.Work distance:420mm
.View field:120-130mm
.Depth of field:: 50~60mm
.Pupil distance: 55 ~ 65mm
.N.W.: 0.10Kg
.Packing size: 185*125*70mm
.Packaging: Oxford zipper bag
Head light
.Voltage:AC90-240V 50-60Hz
.Input Power:≤10W
.Blub Power:LED 5W
.Color temperature:5500±500K
.Illumination:>30000Lux
.CRI:80
.Lamp life:50000h
.DC charging time:5h
.DC power supply time:4h
.N.W.:420g
.Package size:250*190*125mm
.Packing material: carton


Details description

 Feature

Loupe
Wide field of view, long depth of field, high resolution,low multiples amplification, two-way sync adjustment, quick positioning and more attractive.
The appearance of high-end fashion. Fast focusing and positioning



Head light
.High power of 5W LED lighting, high brightness,
.Physical cooling,No low frequency interference,long life,
.Light spot is adjustable.
.Opitcal design,uniform light distribution.



Shortage:Not so high-grade appearance



High quality and high brightness head light,guarantee the big operation
If you choose the suitable magnifier to combine with it,it looks more clearly,operation will be more easy and accurate!



Application





Medical:Clinic.Dental. ENT. ophthalmology; micro-surgery.operating room. Industry















Product configuration
